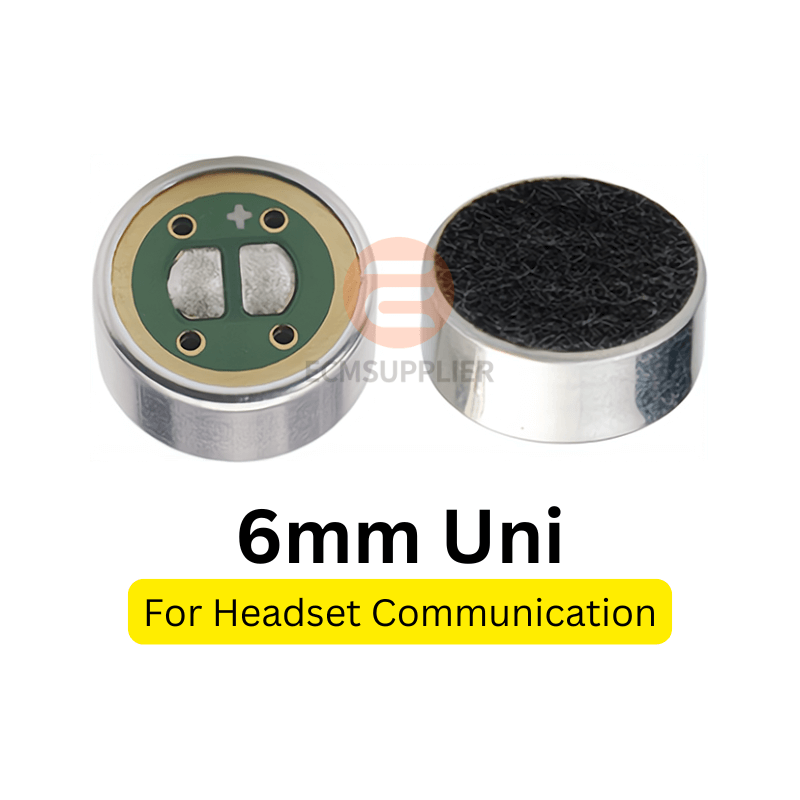

Uni-directional electret condenser microphone for professional headset applications in film, TV, and broadcast environments.
The ECM-B6027UL-906 is a professional uni-directional electret condenser microphone designed specifically for production and broadcast communication headsets. Engineered to deliver clear voice communication in noisy environments, this component ensures reliable audio transmission for director’s headsets, stage communication systems, and broadcasting equipment.
With its focused pickup pattern and optimized frequency response, the microphone minimizes background noise interference while maintaining intelligible voice communication, making it ideal for film, TV production, and live broadcasting applications.
| Current | 500 μA |
|---|---|
| Impedance | 2.2 kΩ |
| Voltage | 2 Vdc |

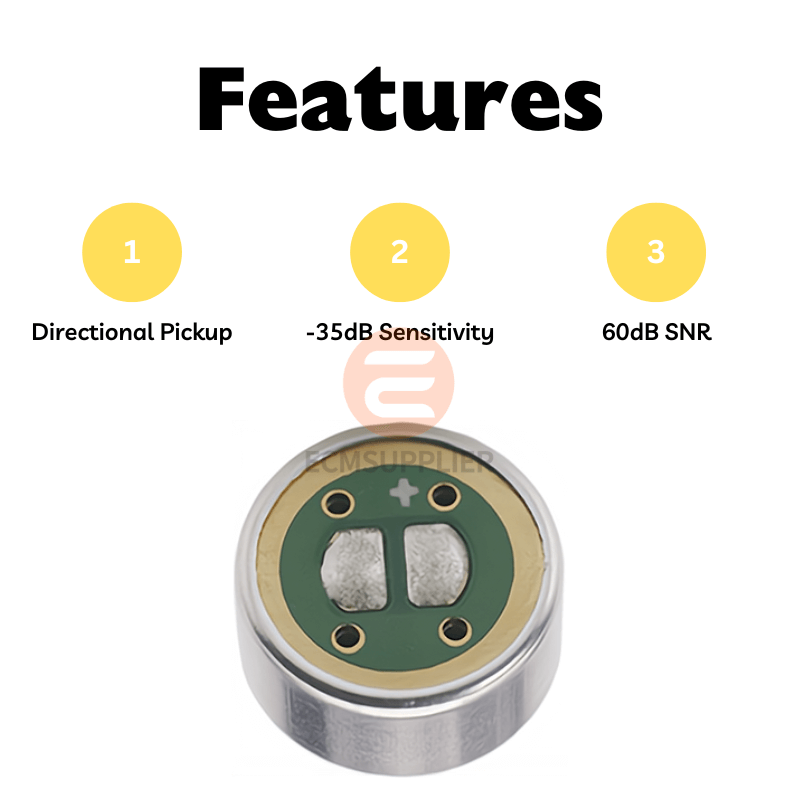

| Directivity | Unidirectional |
|---|---|

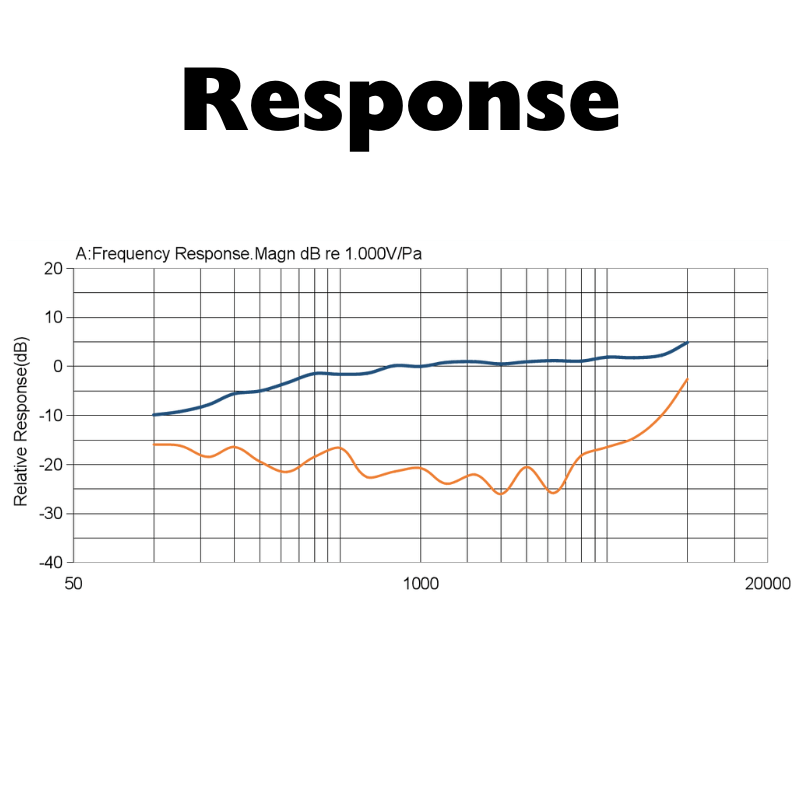

| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -35 ± 2 dB |
| S/N Ratio | 60 dB |
| Max SPL | 110 dB |

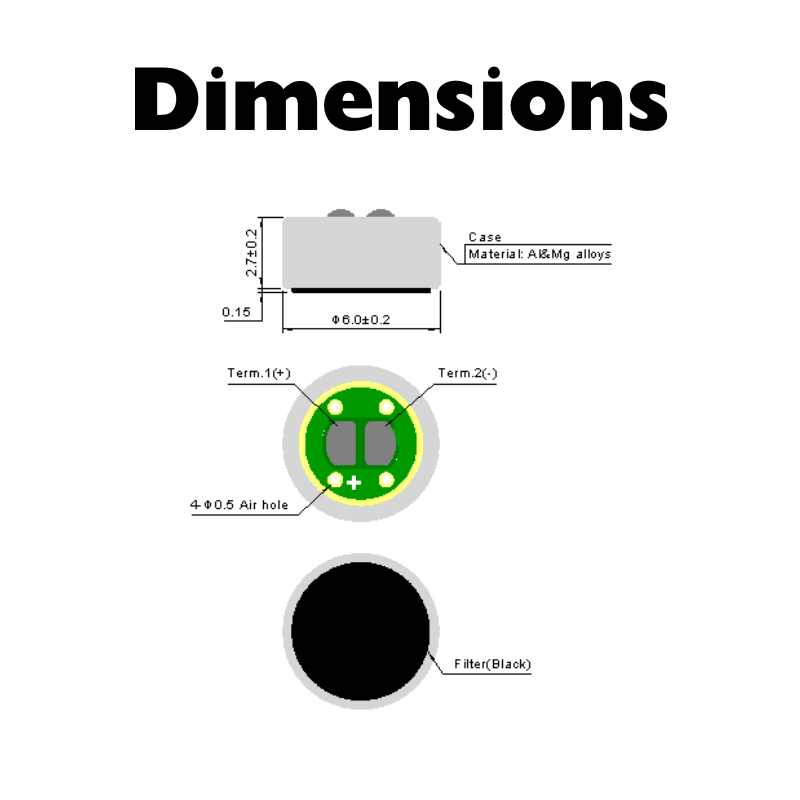

| Dimensions | 6 × 2.7 mm |
|---|---|
| Terminal | Solder Point |
Get technical specifications, pricing, or request samples for production headset microphone components.
