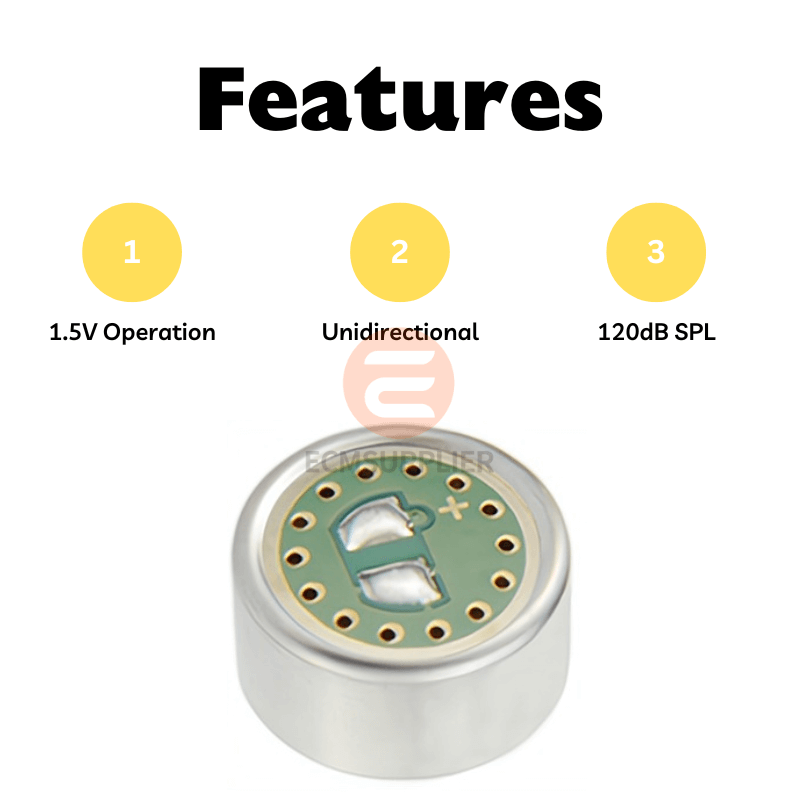

-48±2dB unidirectional microphone for gaming headsets. Features 69dB S/N, 120dB max SPL, low 1.5V operation, and reliability tests for clear team communication.

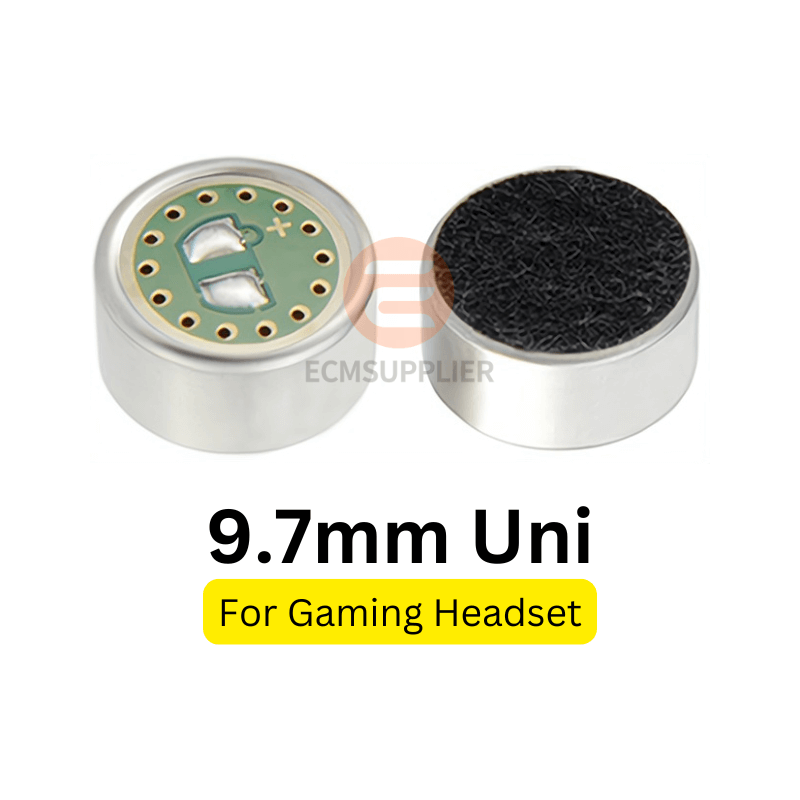

The ECM-B9750MU48-3169 is a unidirectional electret condenser microphone engineered specifically for gaming headsets and communication devices. It delivers clear and intelligible voice capture for immersive multiplayer and esports experiences.
| Operating Voltage | 1.5 Vdc |
|---|---|
| Current Consumption | 500 μA |
| Output Impedance | 680 Ω |
| Directional Pattern | Unidirectional |
|---|---|

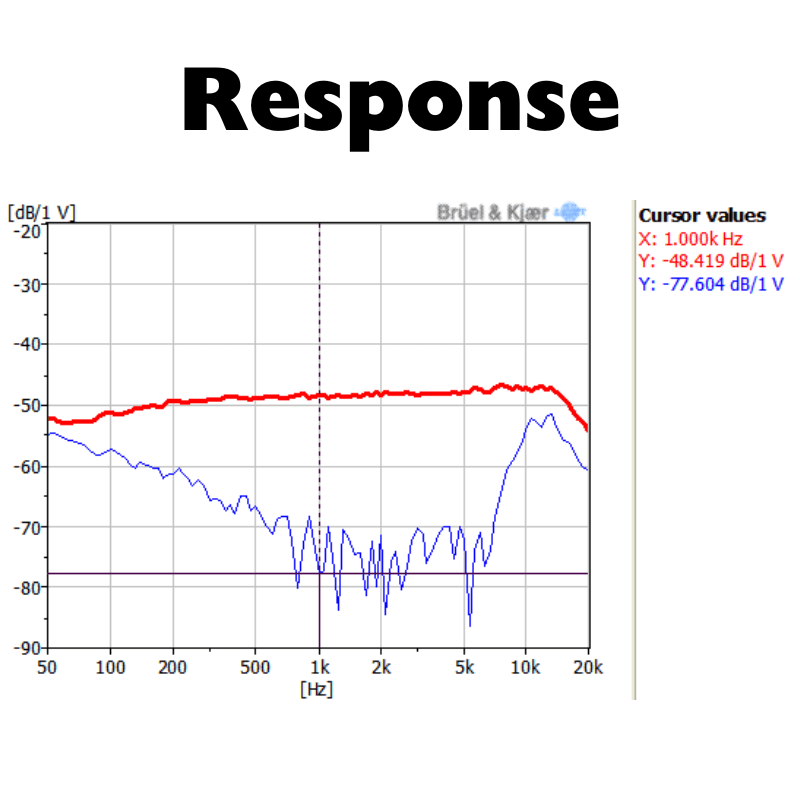

| Frequency Range | 100 ~ 10000 Hz |
| Sensitivity | -48 ± 2 dB |
| Signal-to-Noise Ratio | 69 dB |
| Maximum SPL | 120 dB |

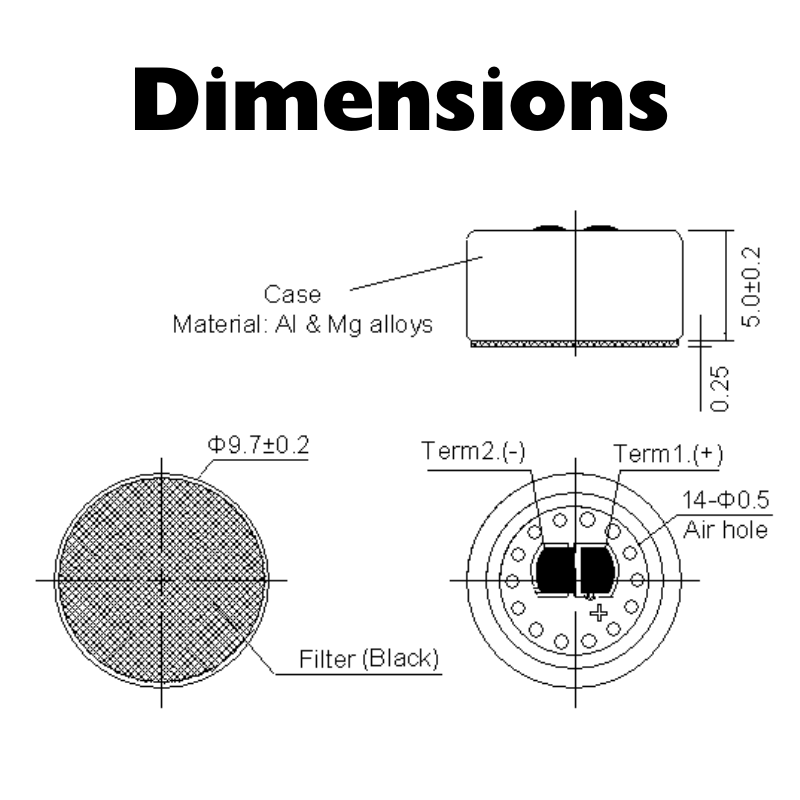

| Dimensions | 9.7 × 5 mm |
|---|---|
| Terminal Type | Solder Point |
Contact our team for quotes or sample requests for gaming and communication microphones.
