High S/N ratio electret condenser microphone designed for clear public address announcements in large conference environments with -34dB sensitivity.

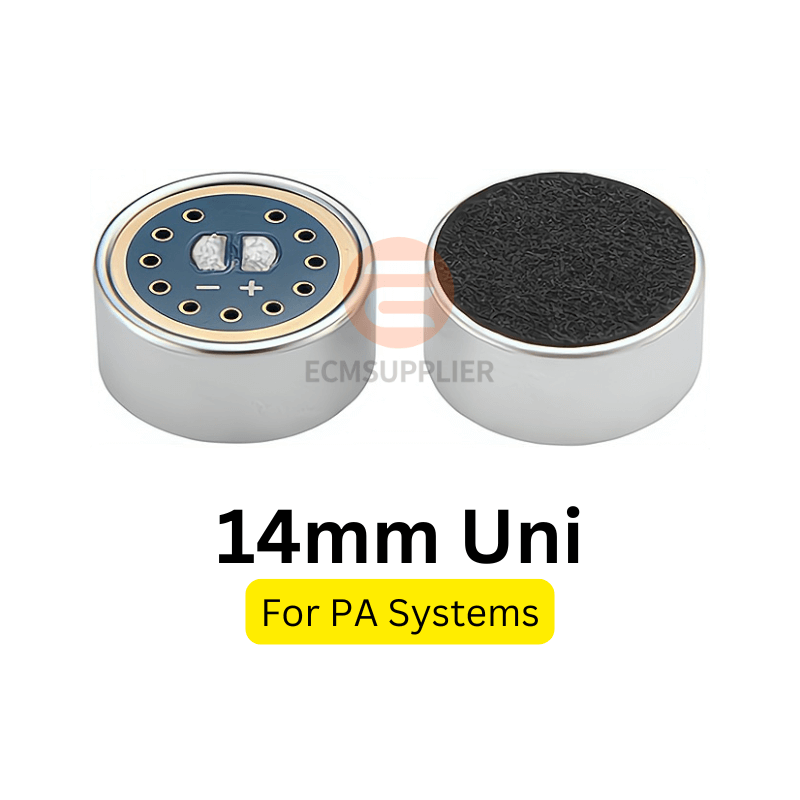

The ECM-B1463UL34-683 is a high-performance electret condenser microphone component specifically engineered for public address systems in conference environments. With exceptional 75dB signal-to-noise ratio and -34dB sensitivity, this microphone delivers clear, intelligible announcements for large conference halls, meeting facilities, and outdoor events.
Designed for integration into conference hall amplification systems and public address equipment, this component offers superior audio performance with high sensitivity and excellent noise rejection, ensuring clear announcements in challenging acoustic environments.
| Current | 500 μA |
|---|---|
| Impedance | 2.2 kΩ |
| Voltage | 2 Vdc |
| Directivity | Unidirectional |
|---|---|

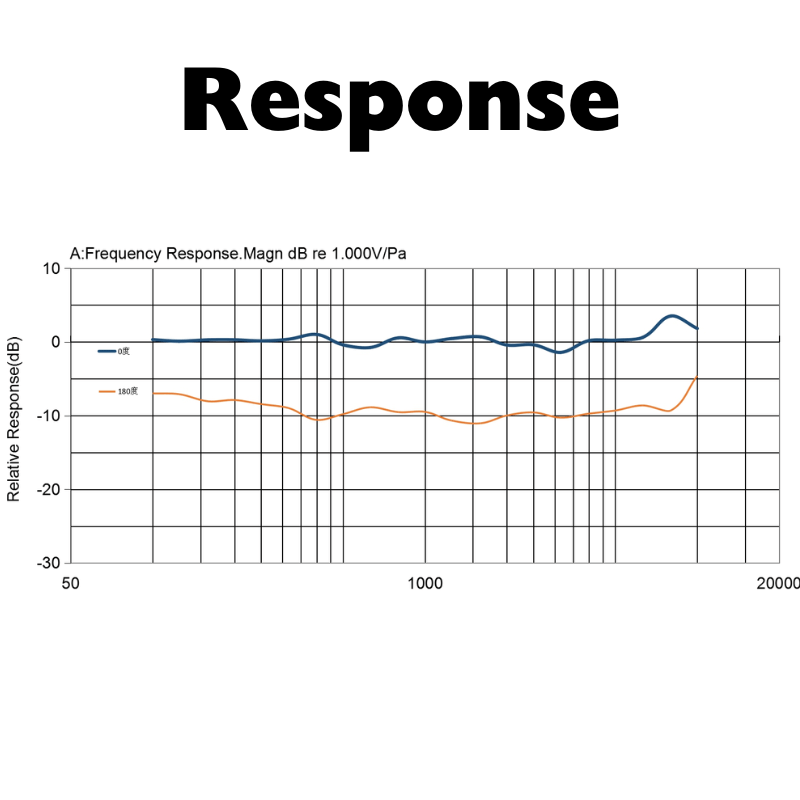

| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -34 ± 2 dB |
| S/N Ratio | 75 dB |
| Max SPL | 110 dB |

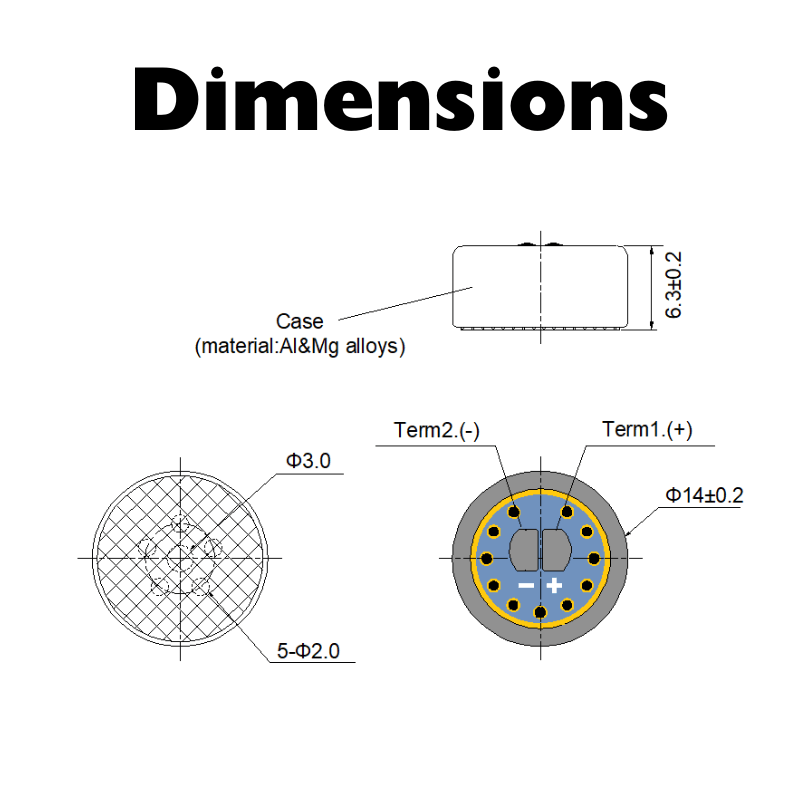

| Dimensions: | 14 × 6.3 mm |
|---|---|
| Terminal | Solder Point |
Get technical specifications, pricing, or request samples for conference hall microphone components.
