Unidirectional electret condenser mic for broadcast-quality streaming & podcasts. Delivers -36±2dB sensitivity, superb 79dB S/N, 120dB SPL at ≤1% THD, and 2.0V operation.

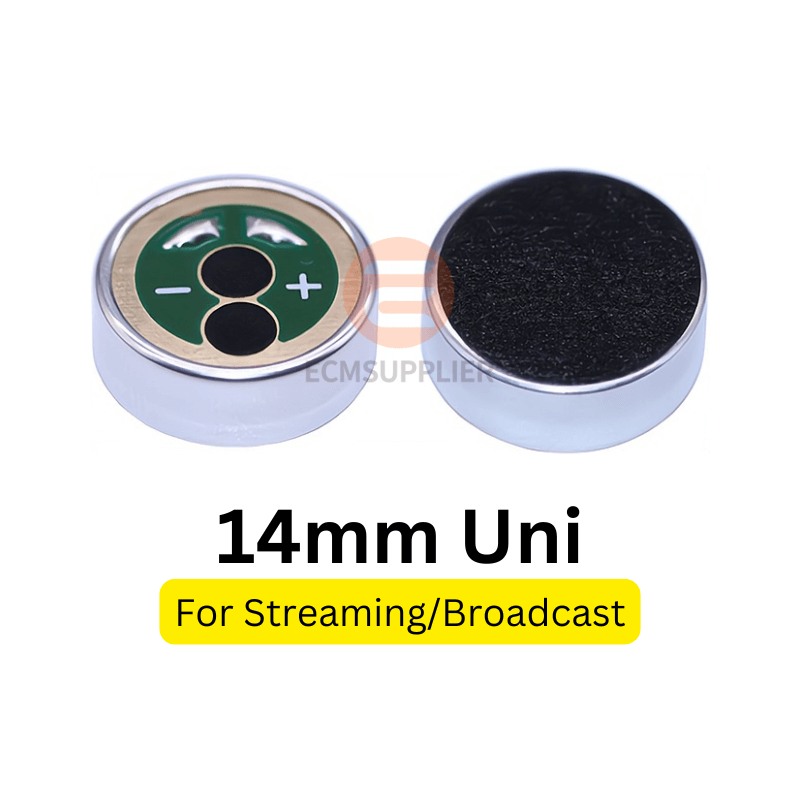

The ECM-B1455UML36-813 is a high-performance unidirectional electret condenser microphone designed for professional content creators, streamers, and broadcast applications. It captures studio-grade audio with exceptional clarity and low noise.
| Operating Voltage | 2 Vdc |
|---|---|
| Current Consumption | 200 μA |
| Output Impedance | 2 kΩ |
| Directional Pattern | Unidirectional |
|---|---|

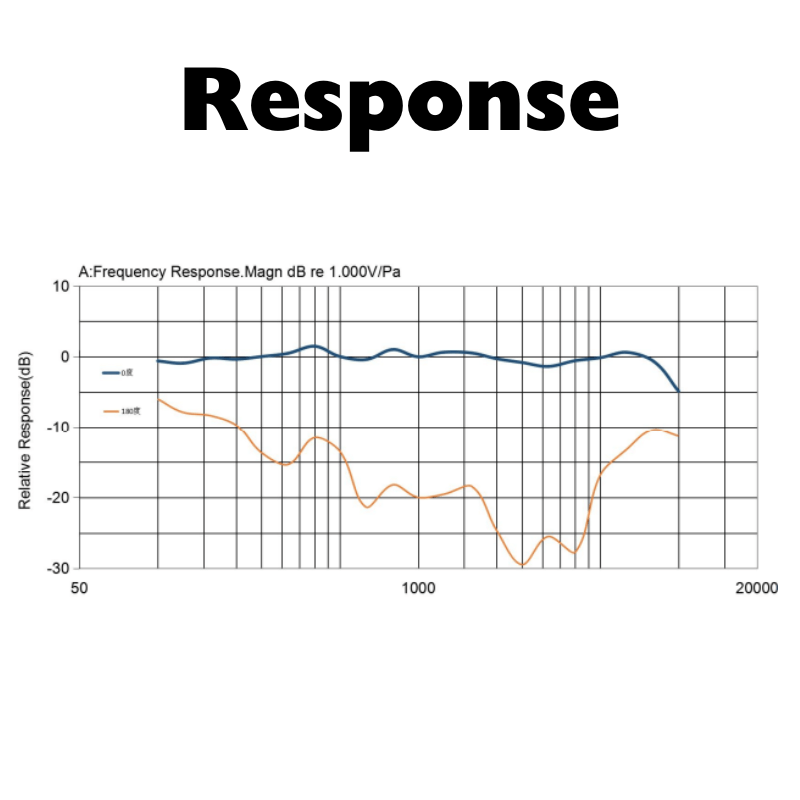

| Frequency Range | 100 ~ 15000 Hz |
| Sensitivity | -36 ± 2 dB |
| Signal-to-Noise Ratio | 79 dB |
| Maximum SPL | 120 dB |

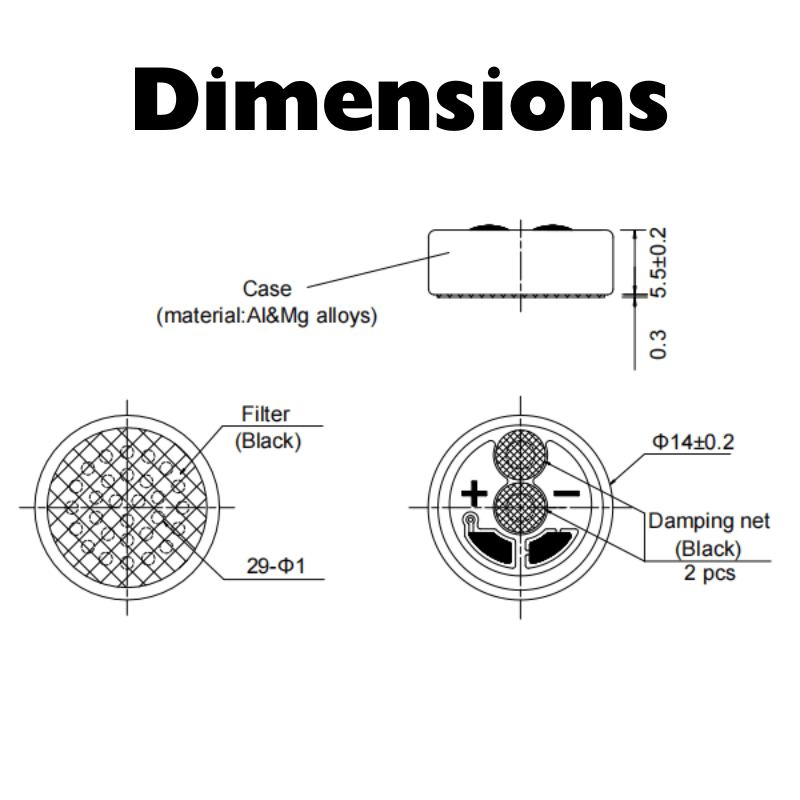

| Dimensions | 14 × 5.5 mm |
|---|---|
| Terminal Type | Solder Point |
For live streaming, podcasting, or broadcast mics, contact our team today.
