Large diaphragm electret condenser microphone with MOS-FET technology for professional studio vocal recording and high-end podcast setups.

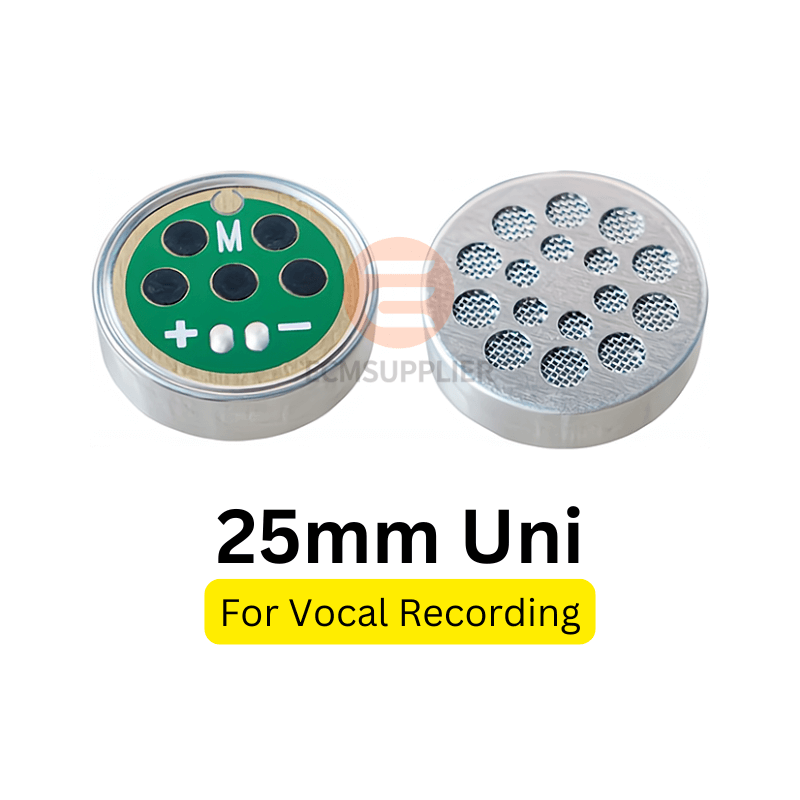

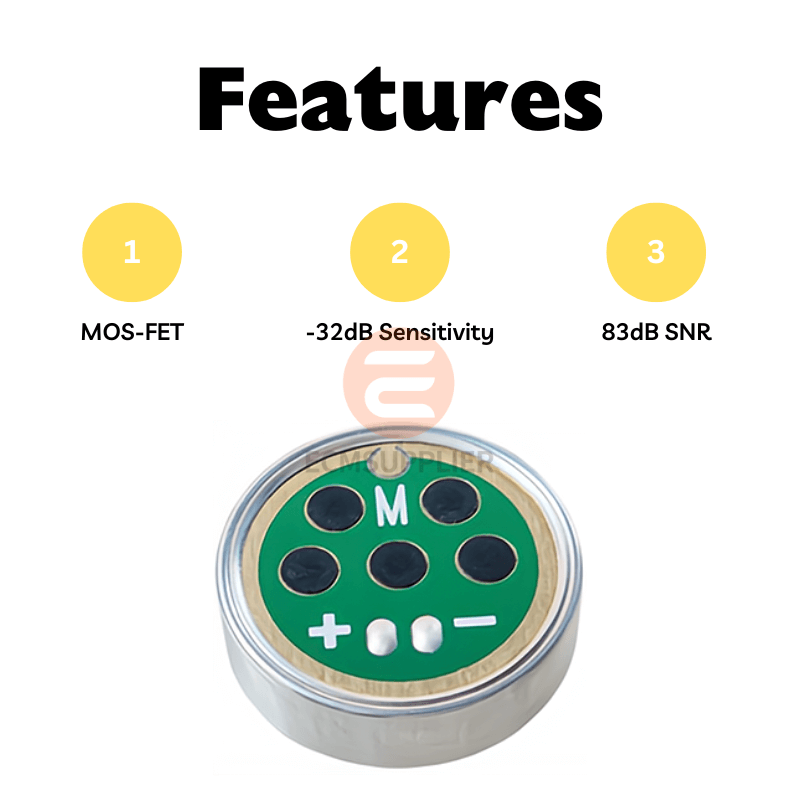

The ECM-B2583UML32-23861 is a premium large diaphragm electret condenser microphone component engineered for professional vocal recording applications. Featuring advanced MOS-FET circuit technology and a uni-directional pickup pattern, this component delivers warm, detailed audio capture with exceptional clarity and minimal noise.
Designed for integration into professional studio microphones, high-end podcast equipment, and voiceover recording systems, this large diaphragm component offers superior audio performance with high sensitivity and an impressive 83dB signal-to-noise ratio for pristine recording quality.
| Current | 200 μA |
|---|---|
| Impedance | 2 kΩ |
| Voltage | 2 Vdc |
| Directivity | Unidirectional |
|---|---|
| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -32 ± 2 dB |
| S/N Ratio | 83 dB |
| Max SPL | 120 dB |

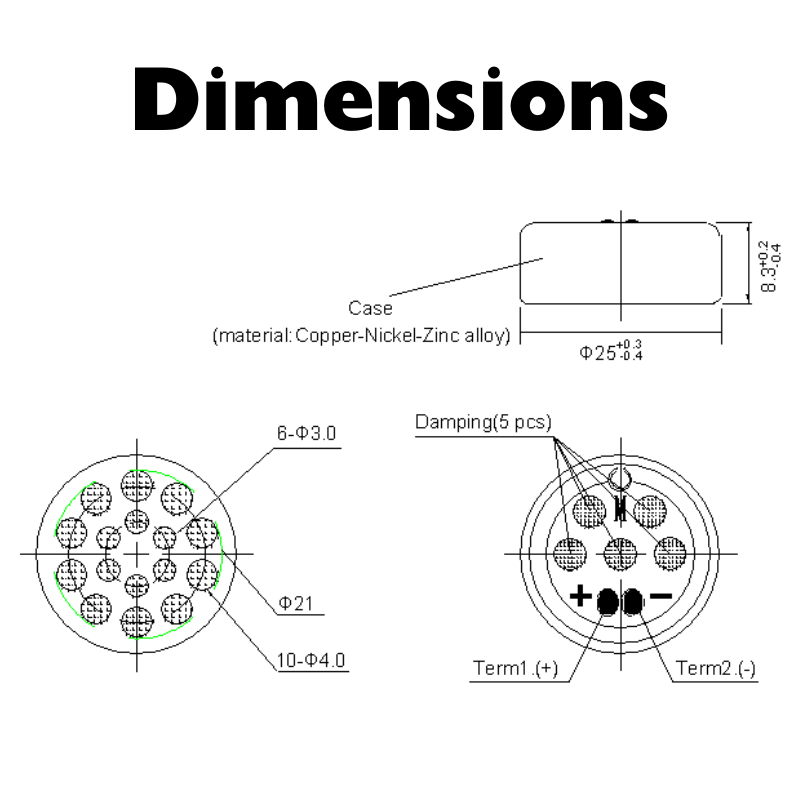

| Dimensions | 25 × 8.3 mm |
|---|---|
| Terminal | Solder Point |
Get technical specifications, pricing, or request samples for professional vocal recording microphone components.
