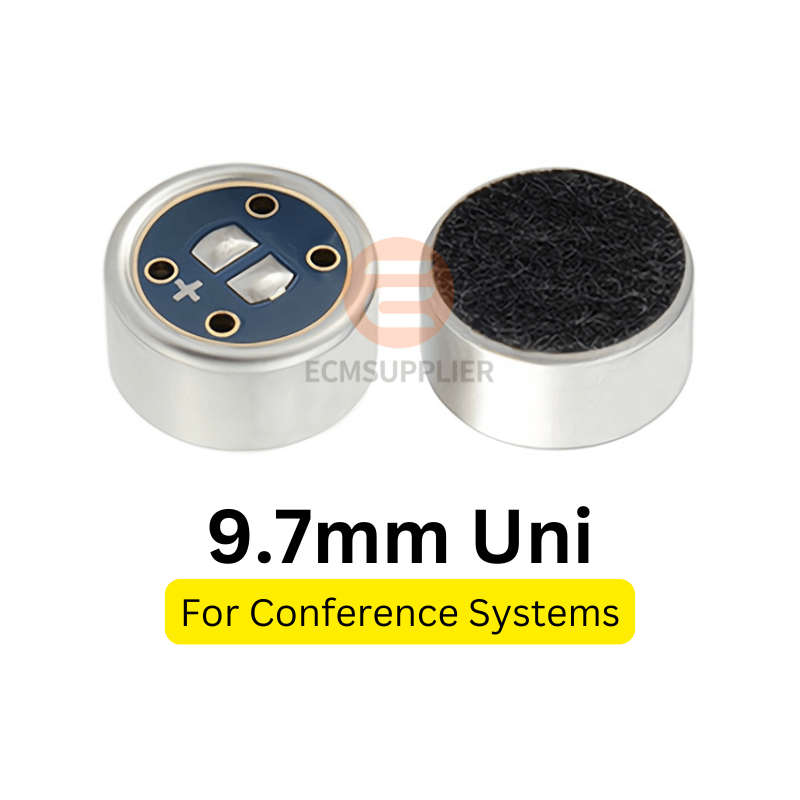

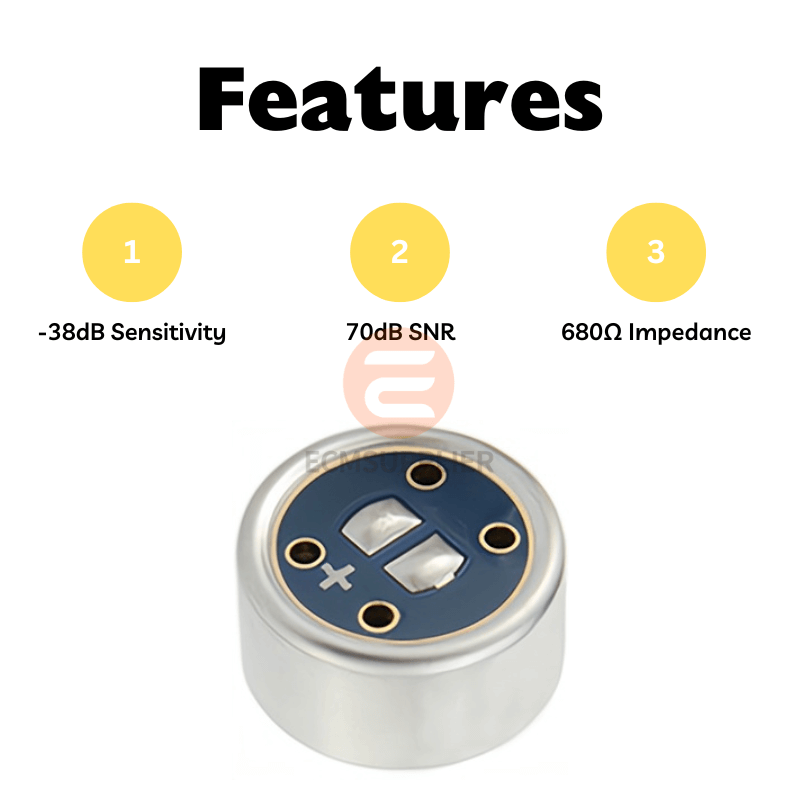

Directional gooseneck electret condenser microphone optimized for conference table distance with -38dB sensitivity and 70dB SNR.
The ECM-B9750UL38-630 is a professional directional gooseneck electret condenser microphone component designed specifically for conference room table installations. Engineered with optimized table-distance sensitivity, this component delivers clear voice pickup for board meetings, lecture halls, and corporate meeting facilities.
With its focused pickup pattern and high signal-to-noise ratio, this gooseneck microphone ensures intelligible voice communication while minimizing ambient noise, making it ideal for fixed conference table installations in professional meeting environments.
| Current | 500 μA |
|---|---|
| Impedance | 680 Ω |
| Voltage | 1.5 Vdc |
| Directivity | Unidirectional |
|---|---|
| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -38 ± 2 dB |
| S/N Ratio | 70 dB |
| Max SPL | 110 dB |

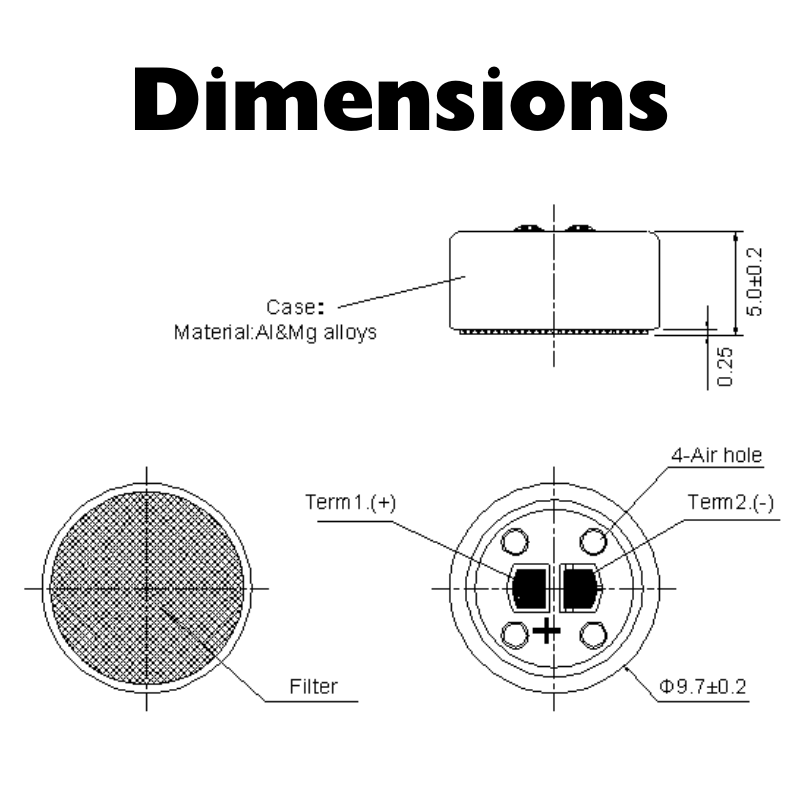

| Dimensions | 9.7 × 5 mm |
|---|---|
| Terminal | Solder Point |
Get technical specifications, pricing, or request samples for conference room microphone components.
