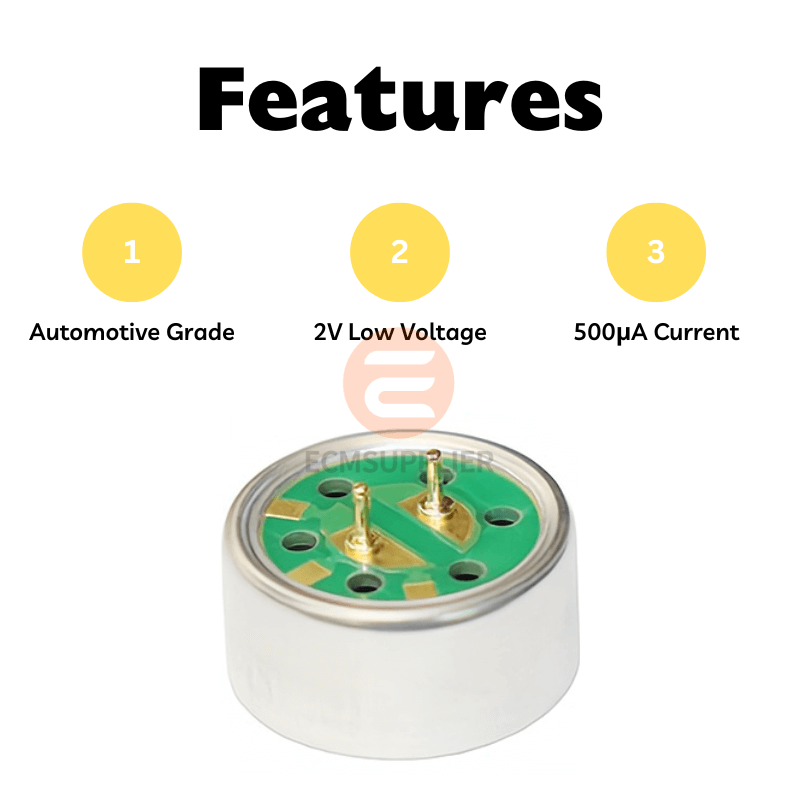

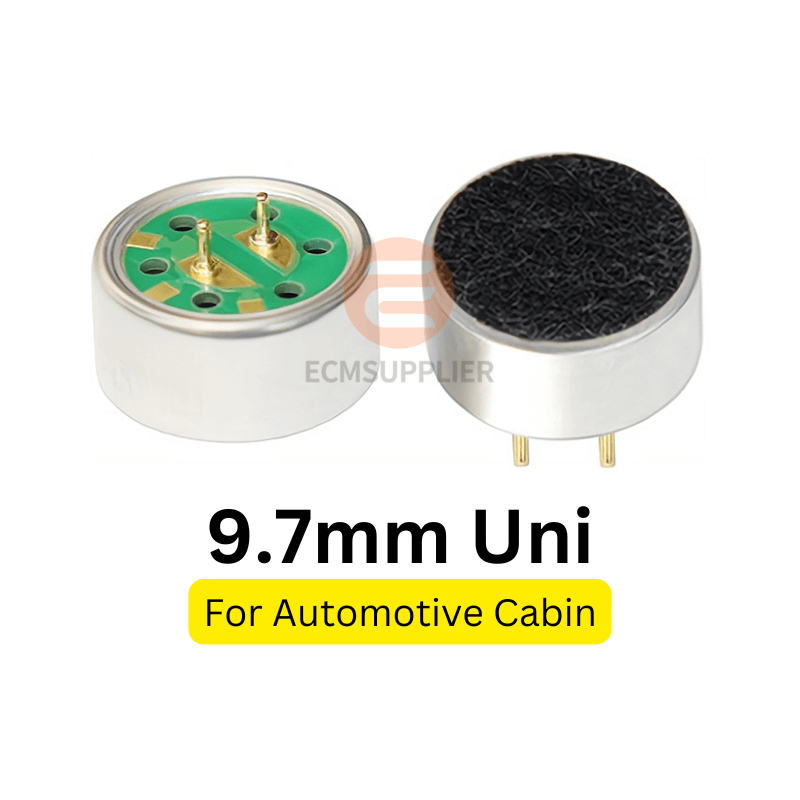

9.7mm automotive grade microphone for car cabin applications. Operates at 2V with low 500μA current consumption, meeting automotive requirements.
The ECM-B9750UP-45 is a specially designed uni-directional electret condenser microphone optimized for in-vehicle audio systems, including overhead console and center console installations.
Engineered to deliver clear voice pickup for hands-free communication and voice command systems in automotive environments.
| Operating Voltage | 4.5 Vdc |
|---|---|
| Current Consumption | 600 μA |
| Output Impedance | 1 kΩ |
| Directional Pattern | Unidirectional |
|---|---|
| Frequency Range | 100 ~ 10000 Hz |
| Sensitivity | -45 ± 2 dB |
| Signal-to-Noise Ratio | 72 dB |
| Maximum SPL | 127 dB |
| Dimensions | 9.7 × 5 mm |
|---|---|
| Terminal Type | Solder Point |
Contact our team for pricing, samples, or technical consultation for in-vehicle microphones.
