Directional electret condenser microphone specifically designed for built-in instrument applications, providing focused sound capture with reduced ambient noise.
The ECM-B1045UL-53 is a professional uni-directional electret condenser microphone specifically designed for built-in instrument applications, providing focused sound capture with excellent ambient noise rejection.
It delivers precise audio pickup for guitar, piano, and other acoustic instrument internal microphone systems, ensuring clear instrument sound reproduction in various performance environments.
| Current | 500 μA |
|---|---|
| Impedance | 2.2 kΩ |
| Voltage | 2 Vdc |
| Directivity | Unidirectional |
|---|---|

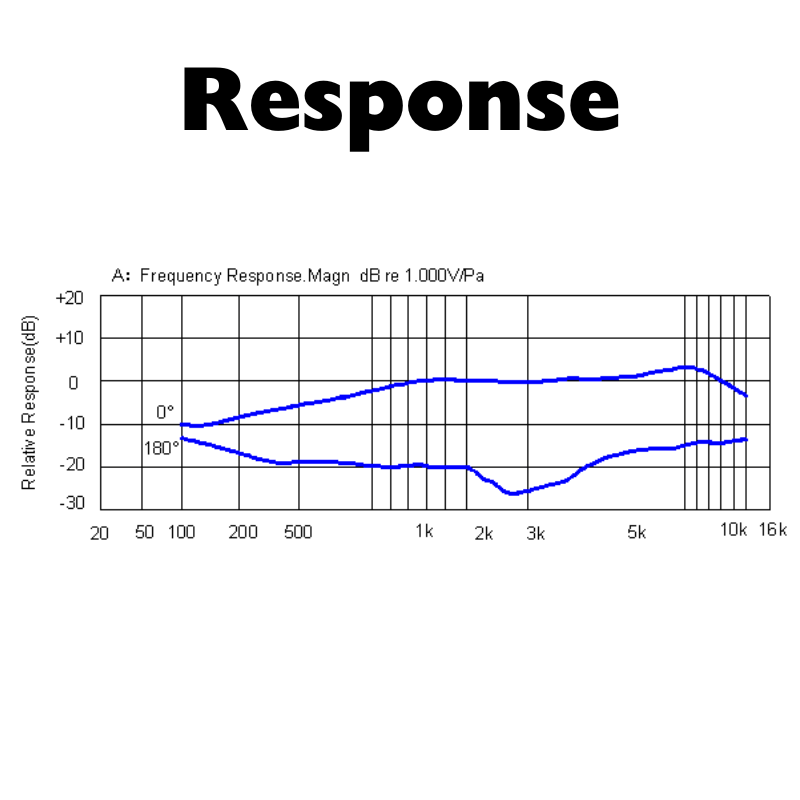

| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -53 ± 2 dB |
| S/N Ratio | 50 dB |
| Max SPL | 110 dB |

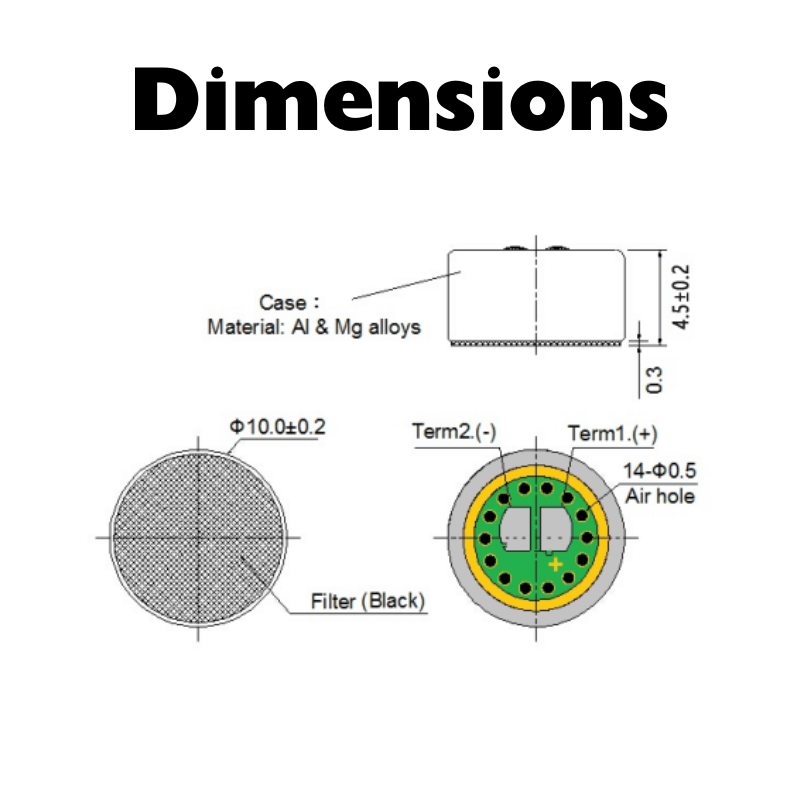

| Diameter | 10 × 4.5 mm |
|---|---|
| Terminal | Solder Point |
Get specifications or OEM support for built-in instrument microphone systems.
