9.7mm conference microphone with 72dB high signal-to-noise ratio for meeting room systems, video conferencing, and clear voice pickup.

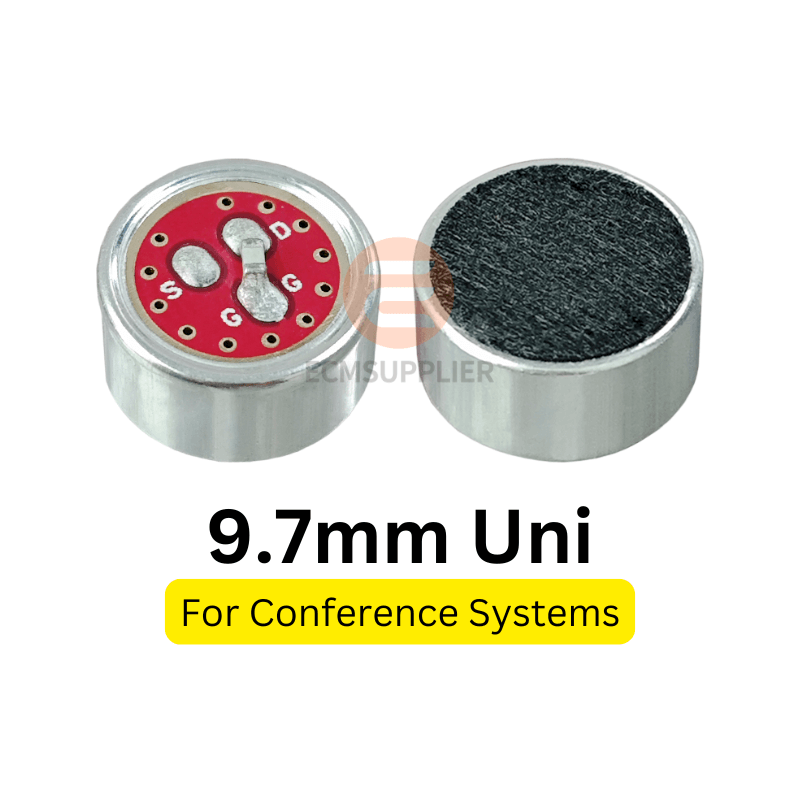

The ECM-B9750UL45-T3-110 is a high-performance uni-directional electret condenser microphone designed for professional conference and meeting systems.
It provides clear, focused voice pickup with excellent noise rejection, ensuring effective communication in meeting and boardroom environments.
| Operating Voltage | 4.5 Vdc |
|---|---|
| Current Consumption | 600 μA |
| Output Impedance | 1 kΩ |
| Directional Pattern | Unidirectional |
|---|---|

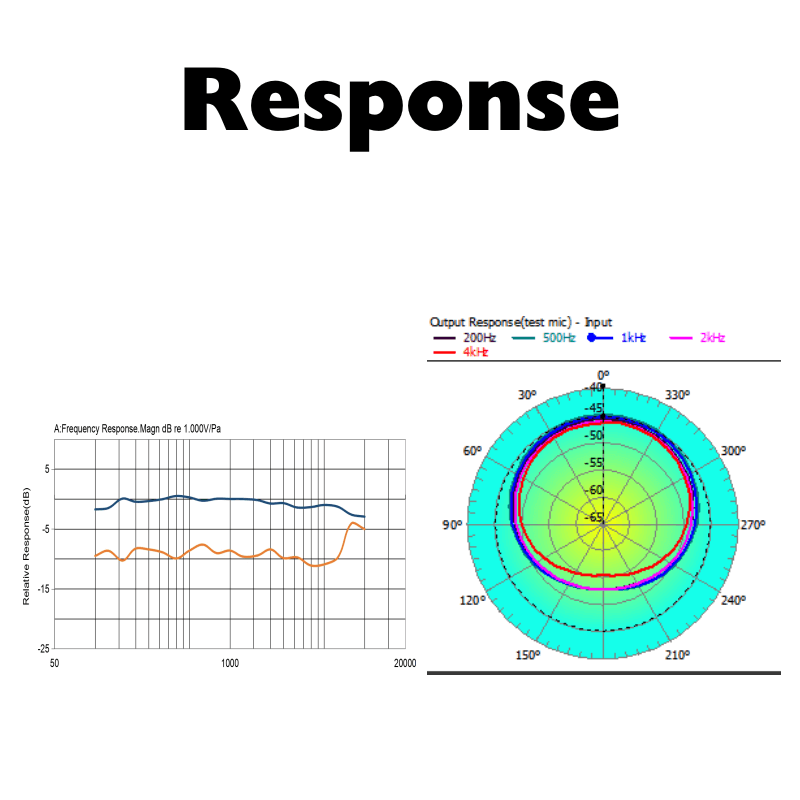

| Frequency Range | 100 ~ 10000 Hz |
| Sensitivity | -45 ± 2 dB |

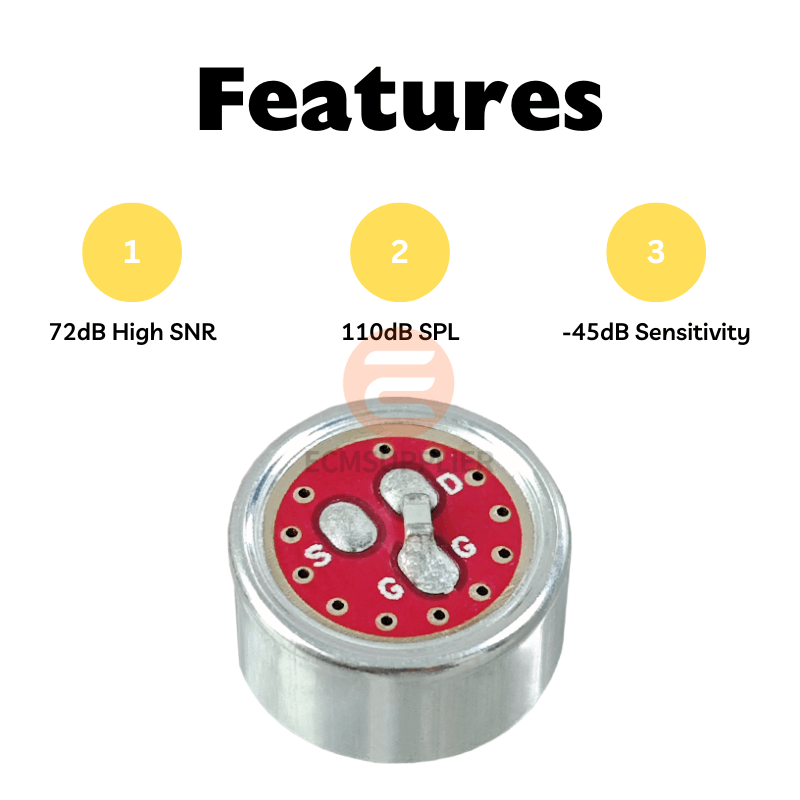

| Signal-to-Noise Ratio | 72 dB |
| Maximum SPL | 110 dB |

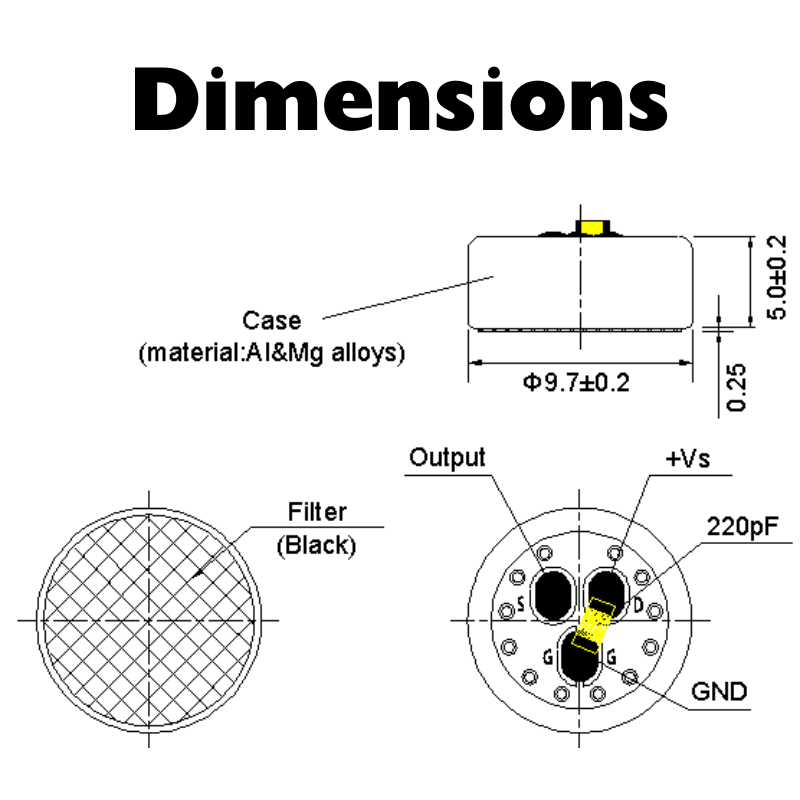

| Dimensions | 9.7 × 5 mm |
|---|---|
| Terminal Type | Solder Point |
Contact our team for pricing, samples, or technical consultation for professional conference and meeting microphones.
