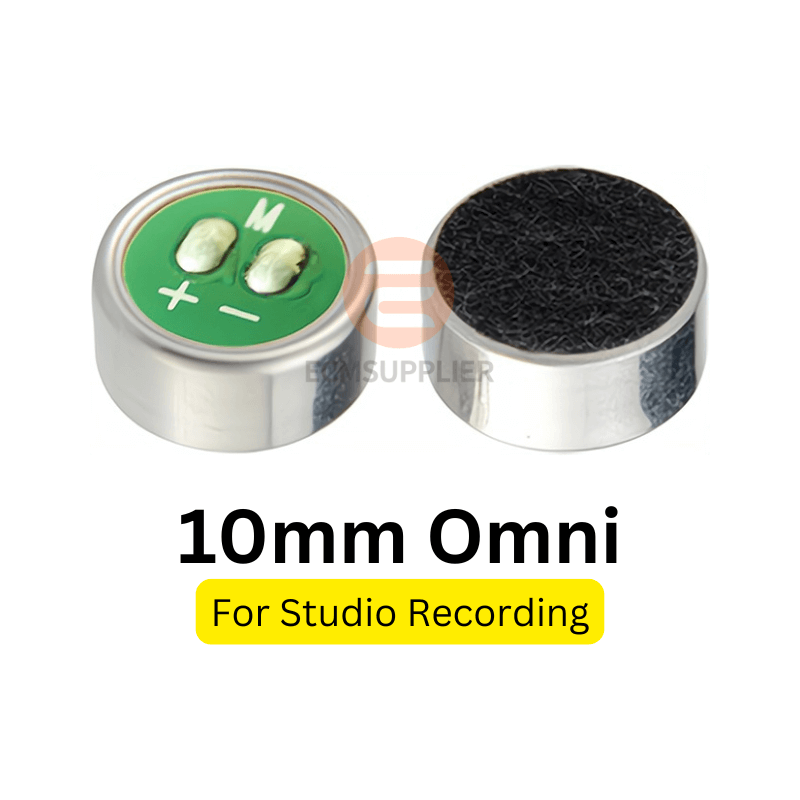

Omni-directional electret condenser microphone with MOS-FET technology for home studio and podcast recording applications.

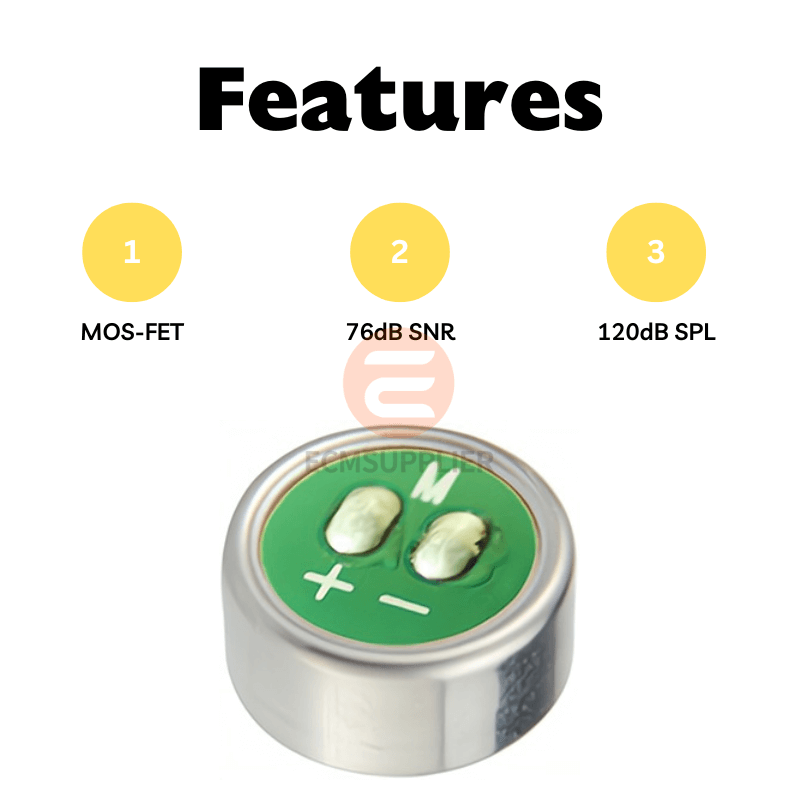

The ECM-B1045AML36-061 is a high-performance omni-directional electret condenser microphone component featuring advanced MOS-FET circuit technology. Designed specifically for studio recording applications, this component delivers exceptional audio quality with minimal noise for podcast equipment and home studio setups.
With its balanced frequency response and high signal-to-noise ratio, this microphone captures natural, detailed audio suitable for professional voice recording, content creation, and home studio applications where clear audio reproduction is essential.
| Current | 200 μA |
|---|---|
| Impedance | 2 kΩ |
| Voltage | 2 Vdc |
| Directivity | Omnidirectional |
|---|---|

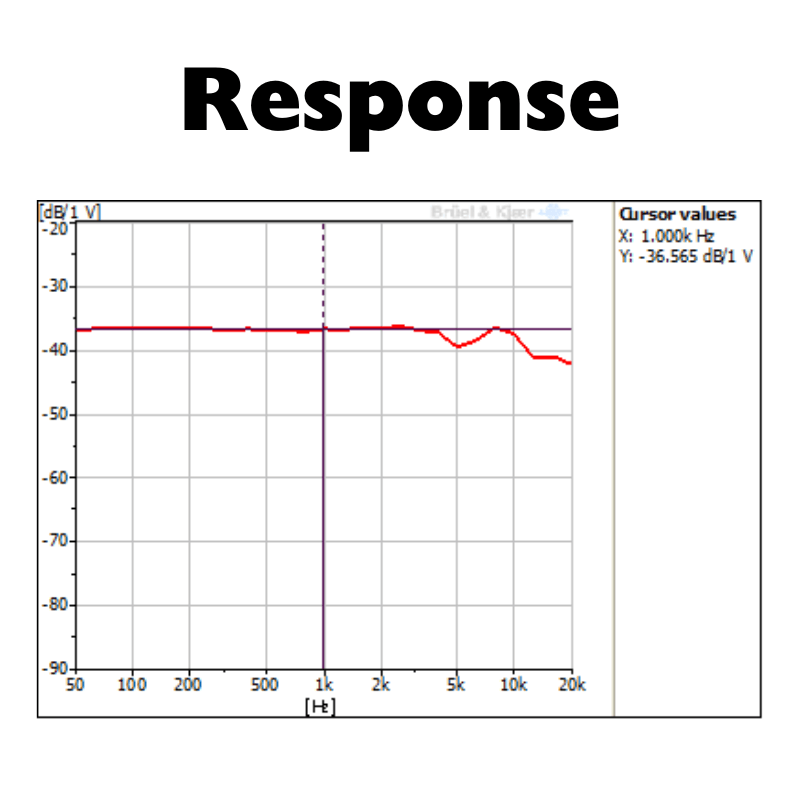

| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -36 ± 2 dB |
| S/N Ratio | 76 dB |
| Max SPL | 120 dB |
| Dimensions | 10 × 4.5 mm |
|---|---|
| Terminal | Solder Point |
