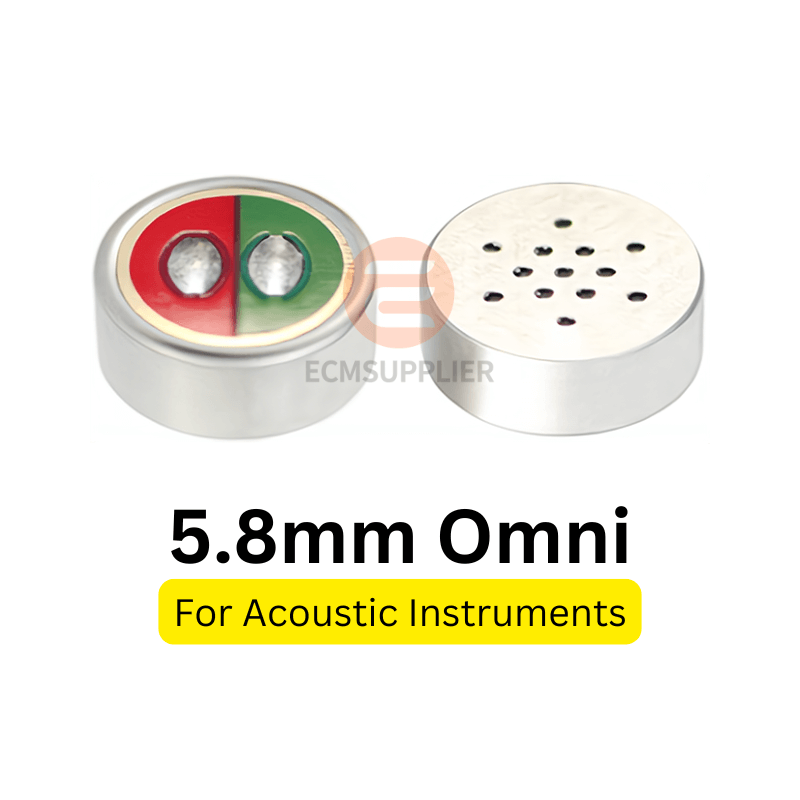

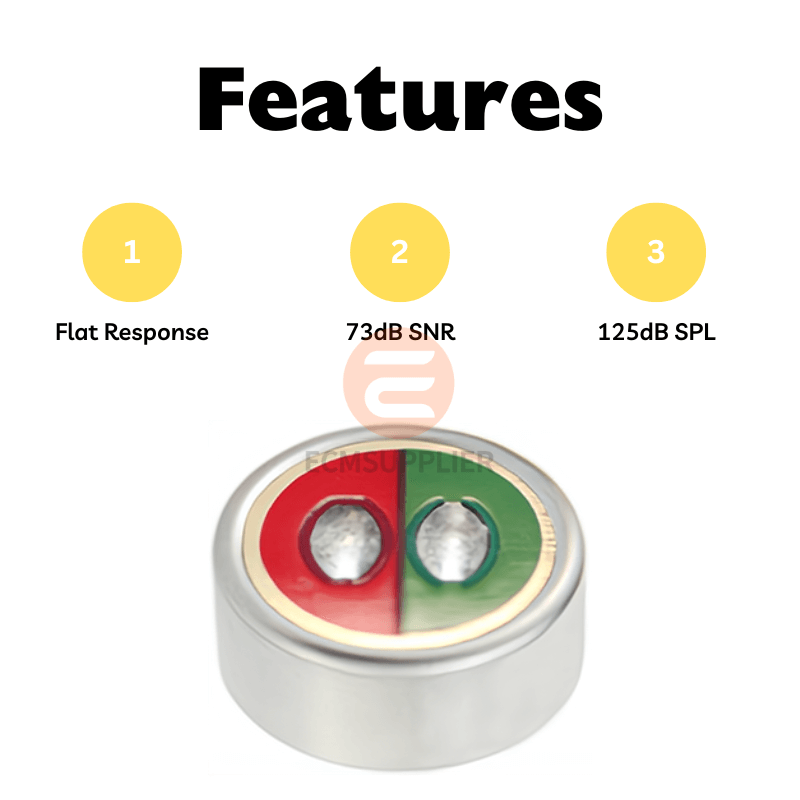

Omni-directional electret condenser microphone designed for natural acoustic instrument recording with flat frequency response and ultra-low noise.
The ECM-B5820AML40-522 is a professional-grade flat response omnidirectional electret condenser microphone designed for natural acoustic instrument recording, studio monitoring, and high-fidelity audio applications.
It delivers exceptionally clean and accurate sound reproduction with minimal coloration, making it ideal for studio recording environments and professional audio systems.
| Current | 200 μA |
|---|---|
| Impedance | 2 kΩ |
| Voltage | 2 Vdc |
| Directivity | Omnidirectional |
|---|---|
| Freq. Range | 100 ~ 10000 Hz |
| Sensitivity | -40 ± 2 dB |
| S/N Ratio | 73 dB |
| Max SPL | 125 dB |

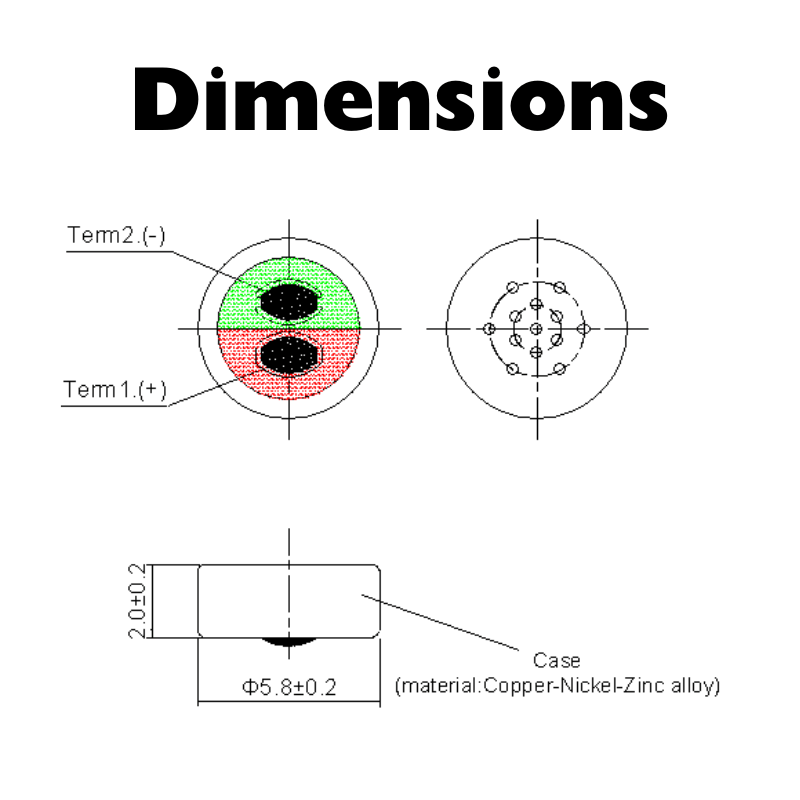

| Dimensions | 5.8 × 2 mm |
|---|---|
| Terminal | Solder Point |
Get technical specifications, pricing, or request samples for our flat-response studio microphone.
