High-sensitivity omnidirectional electret condenser microphone optimized for parabolic reflector systems, ideal for long-distance audio capture in nature recording, sports events, and directional monitoring.

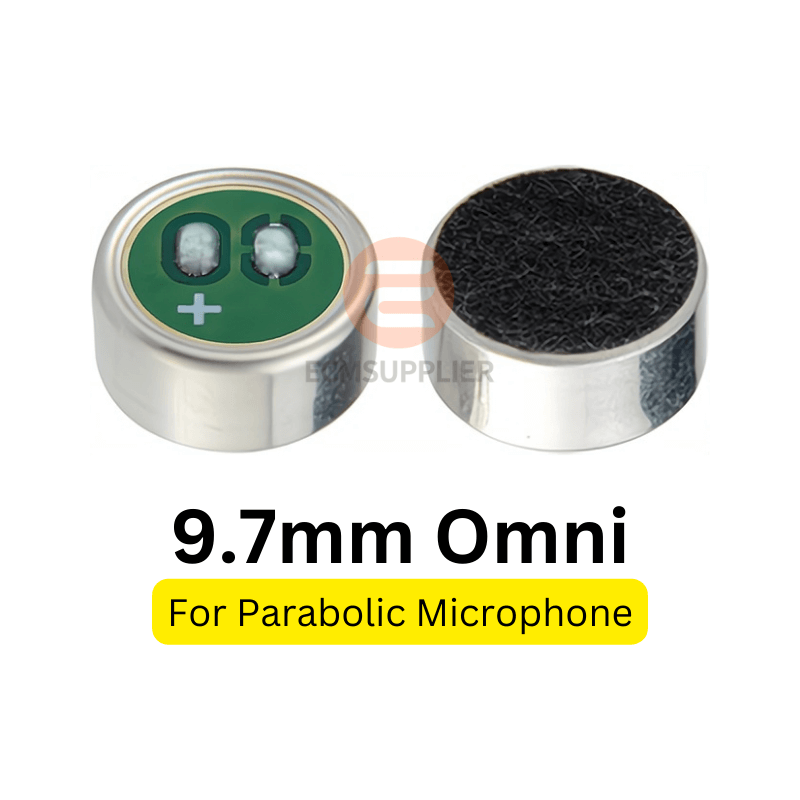

The ECM-B9750AL26-062 is a high-sensitivity omnidirectional electret condenser microphone engineered for parabolic reflector systems.
It excels in capturing distant and subtle sounds, making it perfect for nature recording, sports broadcasting, wildlife research, and professional directional audio applications.
| Operating Voltage | 2 Vdc |
|---|---|
| Current Consumption | 500 μA |
| Output Impedance | 2.2 kΩ |
| Directional Pattern | Omnidirectional |
|---|---|

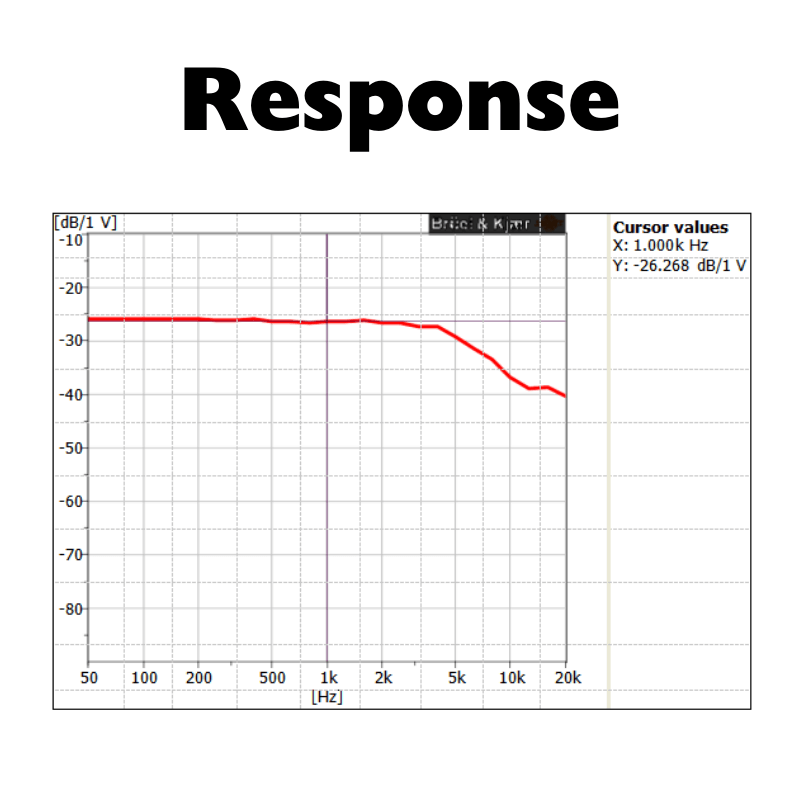

| Frequency Range | 50 ~ 20000 Hz |
| Sensitivity | -26 ± 3 dB |
| Signal-to-Noise Ratio | 82 dB |
| Maximum SPL | 110 dB |
| Environmental Rating | IP67 |
|---|---|
| Dimensions | 9.7 × 5 mm |
| Terminal Type | Solder Point |
For pricing, sample requests, OEM customization, or technical consultation, please contact our sales or engineering team.
