Dynamic microphone for headset intercom systems

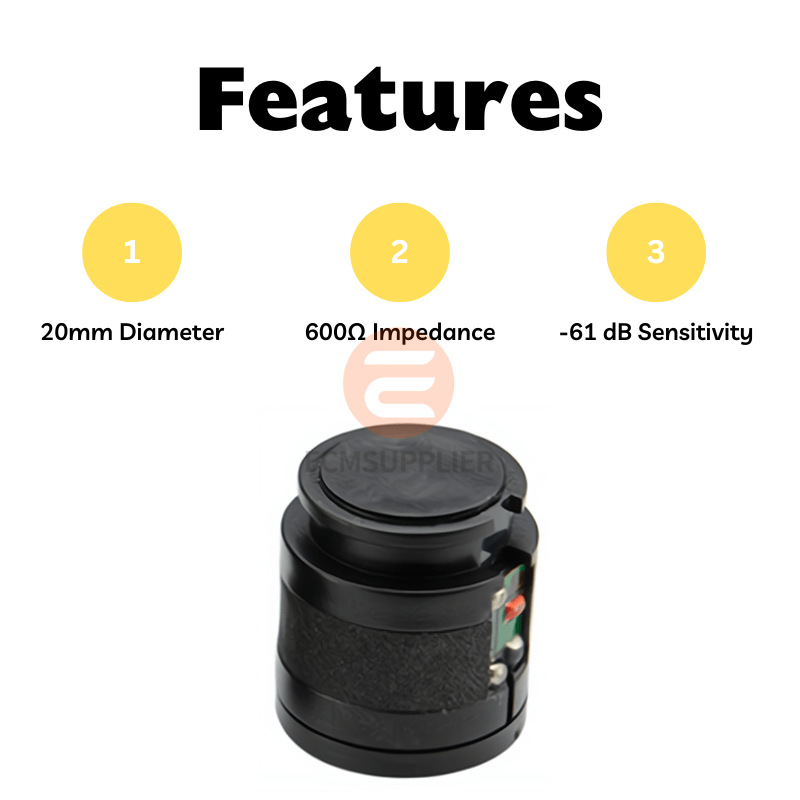

Key specifications: 20mm, 600Ω, -61dB

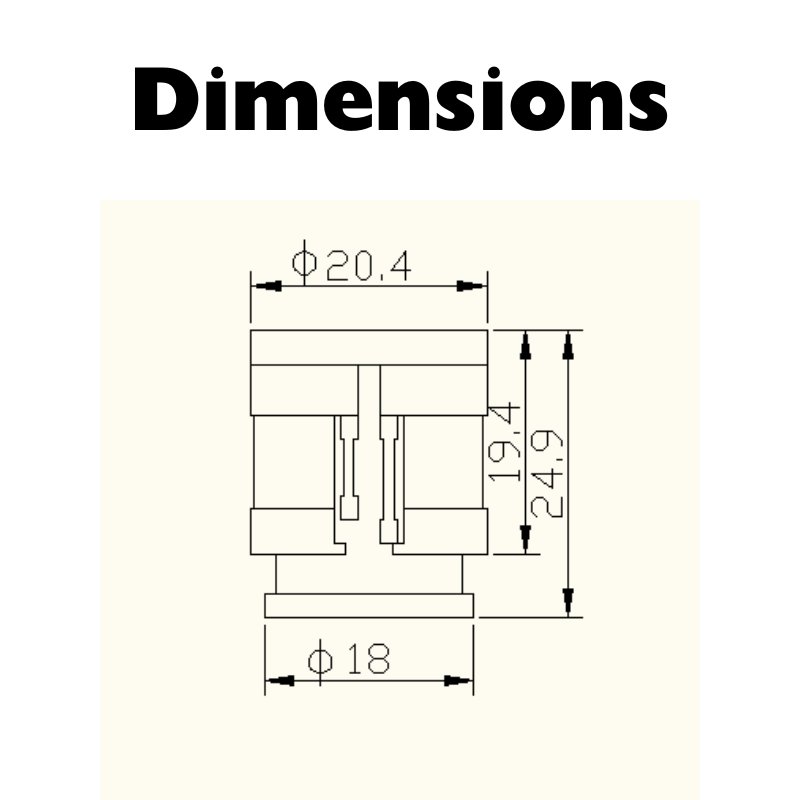

Dimensional drawing
Frequency response curve
Marquess Electronics manufacturing facility
Microphone production and quality control line

20mm Dynamic Microphone for Headset Intercom

600-ohm, communication-headset, dynamic-mic, headset-microphone, intercom-system

20mm dynamic microphone for headset intercom systems. Features -61dB sensitivity, 600Ω impedance, and compact design for comfortable headset integration.

5 Year Warranty UL Certified
Brand: ECMS

Product Overview

The ECM-DM2025K600 is a 20mm dynamic microphone designed for professional headset intercom and communication systems. It delivers optimized acoustic performance for clear and reliable voice transmission in industrial, security, and operational environments.

Key Features

  • Designed for professional headset intercom system integration
  • 600Ω impedance standard for industrial communication systems
  • Wide frequency response of 100 ~ 13000 Hz for enhanced voice clarity
  • Optimized -61 ±3dB sensitivity for clear and stable voice pickup
  • Lightweight 7.8g design for comfortable headset mounting

Applications

  • Industrial headset intercom systems
  • Security and surveillance communication headsets
  • Construction and manufacturing site communication
  • Event production and stage crew intercom systems
  • Professional two-way radio accessories

Technical Specifications

Electrical Characteristics

Impedance600 Ω

Acoustic Performance

DirectivityUnidirectional
Frequency Range100 ~ 13000 Hz
Sensitivity-61 ± 3 dB

Environmental & Mechanical

Dimensions20.4 × 24.9 mm
Weight7.8 g
Terminal TypeSolder Point

Request Headset Microphone Information

Contact our team for pricing, samples, or technical consultation for professional headset and intercom microphone solutions.

Submitted successfully!
Submission failed. Please try again later.
