Dynamic microphone for communication headsets

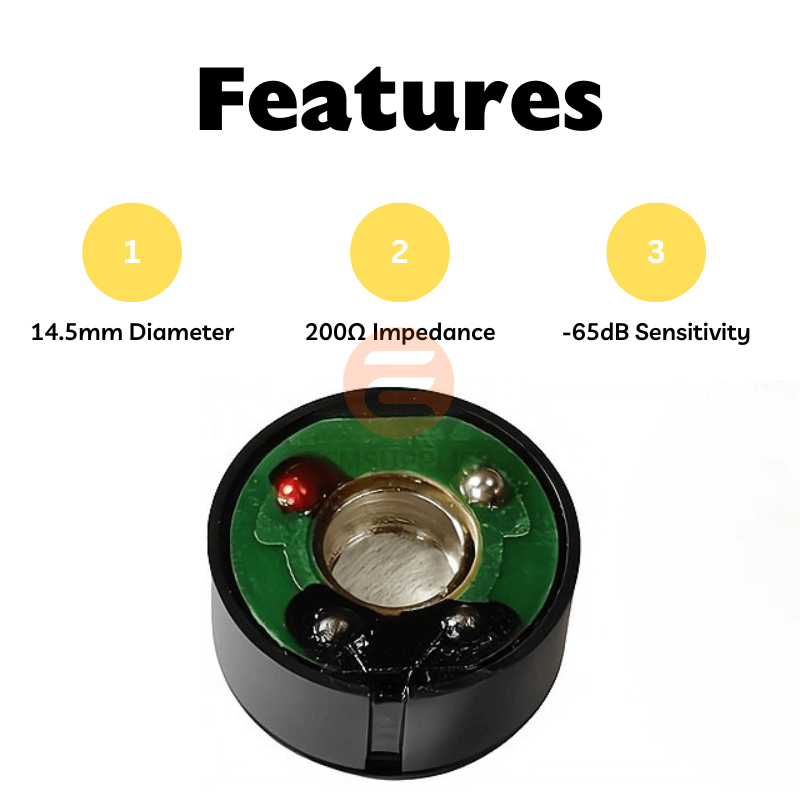

Key specifications: 14.5mm, 200Ω, -65dB
Dimensional drawing

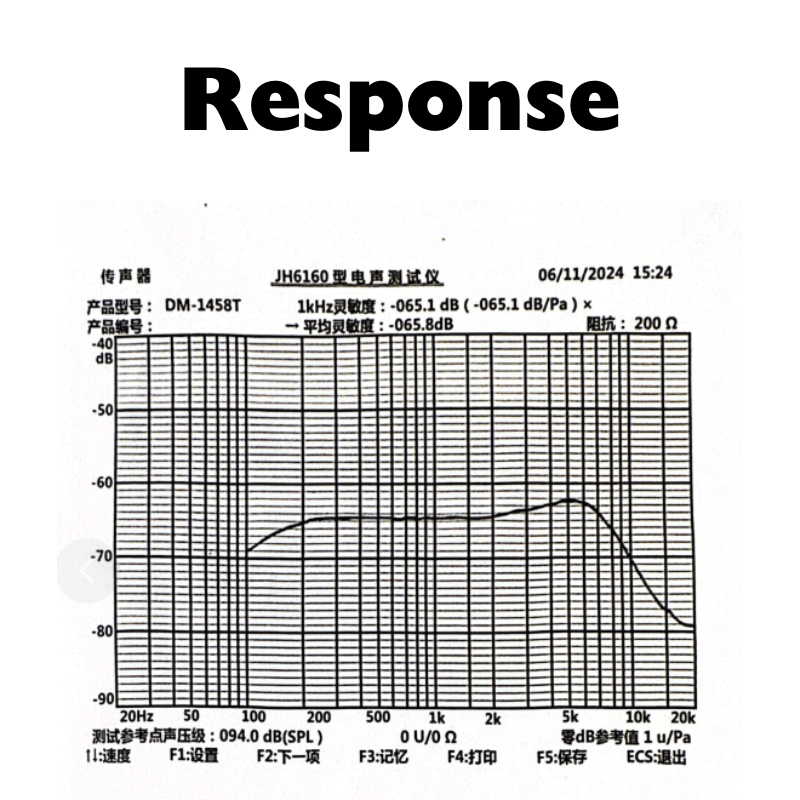

Frequency response curve
Marquess Electronics manufacturing facility
Microphone production and quality control line

14.5mm Dynamic Microphone for Call Centers & Dispatch Systems

200-ohm, call-center-microphone, dispatch-system, dynamic-mic, two-way-radio

14.5mm dynamic microphone for commercial communication applications. Standard 200Ω impedance for easy integration into call center headsets and two-way radio systems.

5 Year Warranty UL Certified
Brand: ECMS

Product Overview

The ECM-DM1458T-200 is a 14.5mm dynamic microphone designed for professional call center headsets and dispatch communication systems. Its rugged construction and optimized voice pickup ensure reliable performance in demanding operational environments.

Key Features

  • Designed for call center and dispatch system applications
  • 200Ω impedance (also available in 150Ω, 250Ω, 600Ω variants)
  • Uni-directional pattern with ≥10dB front-to-back ratio
  • Optimized -65±3dB sensitivity for clear voice transmission
  • Lightweight 2.85g design for comfortable headset integration

Applications

  • Call center and customer service headsets
  • Dispatch and emergency communication systems
  • Aviation headset communication (compatible with aviation systems)
  • Professional communication and intercom devices
  • Contact center and telemarketing equipment

Technical Specifications

Electrical Characteristics

Impedance200 Ω

Acoustic Performance

DirectivityUnidirectional
Frequency Range100 ~ 9000 Hz
Sensitivity-65 ± 3 dB

Environmental & Mechanical

Dimensions14.5 × 7.5 mm
Weight2.85 g
Terminal TypeSolder Point

Request Headset Mic Info

Contact our team for pricing, samples, or technical consultation for professional headset microphones.
